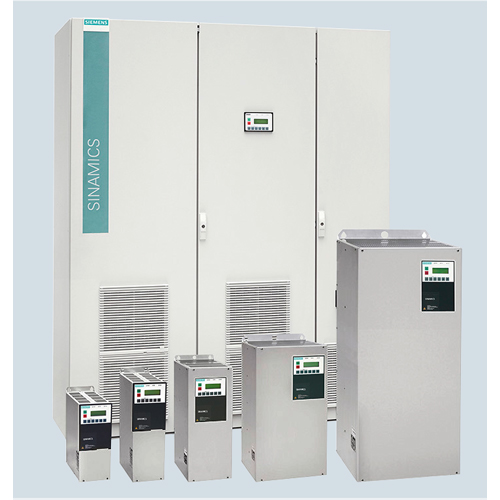

SINAMICS G180 cabinet units - air-cooled
Products
SINAMICS G180 2T3F-87601-250 400-690V IT, 50/60 Hz Motor output (typ.) 250kW (690V) HWD without opt. on request IP21 air-cooled, 12-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87601-315 400-690V IT, 50/60 Hz Motor output (typ.) 315kW (690V) HWD without opt. 2002*806*605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87501-315 230-500 V, IT, 50/60 Hz Motor output (typ.) 315kW (500V) HWD without opt. 2002806605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87501-315 230-500 V TN/TT, 50/60 Hz Motor output (typ.) 315kW (500V) HWD without opt. 2002806605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, Second environment C3
SINAMICS G180 2T3A-87601-909 400-690V IT, 50/60 Hz Motor output (typ.) 900kW (690V) HWD without opt. 2002*1606*605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87401-560 230-415V TN/TT, 50/60 Hz Motor output (typ.) 560kW (400V) HWD without opt. 20021606605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, Second environment C3
SINAMICS G180 2T3F-87501-500 230-500 V IT, 50/60 Hz Motor output (typ.) 500kW (500V) HWD without opt. on request IP21 air-cooled, 12-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87601-500 400-690V IT, 50/60 Hz Motor output (typ.) 500kW (690V) HWD without opt. 2002*1206*605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3F-87601-800 400-690V IT, 50/60 Hz Motor output (typ.) 800kW (690V) HWD without opt. 2002*1806*605 mm IP21 air-cooled, 12-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87501-400 230-500 V TN/TT, 50/60 Hz Motor output (typ.) 400kW (500V) HWD without opt. 2002806605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, Second environment C3
SINAMICS G180 2T3F-87601-315 400-690V IT, 50/60 Hz Motor output (typ.) 315kW (690V) HWD without opt. on request IP21 air-cooled, 12-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87501-630 230-500 V, IT, 50/60 Hz Motor output (typ.) 630kW (500V) HWD without opt. 20021606605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87501-710 230-500 V, IT, 50/60 Hz Motor output (typ.) 710kW (500V) HWD without opt. 2002*1606*605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3F-87601-630 400-690V IT, 50/60 Hz Motor output (typ.) 630kW (690V) HWD without opt. 2002*1806*605 mm IP21 air-cooled, 12-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87501-560 230-500 V TN/TT, 50/60 Hz Motor output (typ.) 560kW (500V) HWD without opt. 20021606605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, Second environment C3
SINAMICS G180 2T3A-87601-400 400-690V IT, 50/60 Hz Motor output (typ.) 400kW (690V) HWD without opt. 2002*806*605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87601-800 400-690V TN/TT, 50/60 Hz Motor output (typ.) 800kW (690V) HWD without opt. 2002*1606*605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, Second environment C3
SINAMICS G180 2T3A-87601-250 400-690V IT, 50/60 Hz Motor output (typ.) 250kW (690V) HWD without opt. 2002*806*605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
SINAMICS G180 2T3A-87501-710 230-500 V TN/TT, 50/60 Hz Motor output (typ.) 710kW (500V) HWD without opt. 20021606605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3 line filter EN 55011 Class A, Second environment C3
SINAMICS G180 2T3A-87601-710 400-690V IT, 50/60 Hz Motor output (typ.) 710kW (690V) HWD without opt. 2002*1606*605 mm IP21 air-cooled, 6-pulse line reactor, DV/DT Output filter EMC EN61800-3
